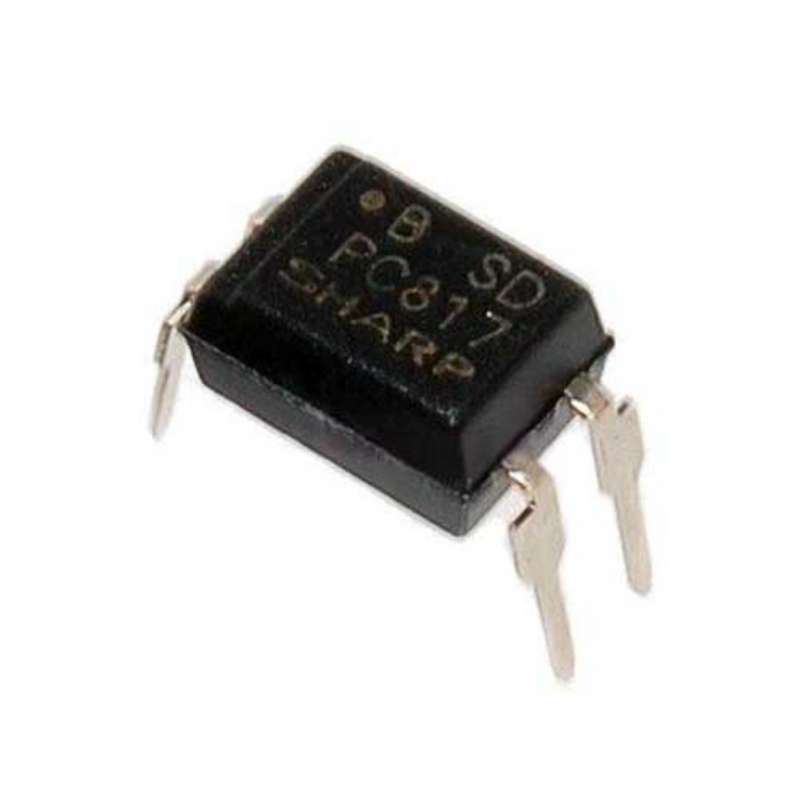

آی سی مدل PC817

8x6x5 میلی‌متر

آموزشی

صنعتی

عمومی

4-Pin High Density Mounting Type Photocoupler; Current Transfer Ratio (Ctr):50% At It=5ma)
Manufacturer: Sharp Microelectronics
Product Category: Transistor Output Optocouplers

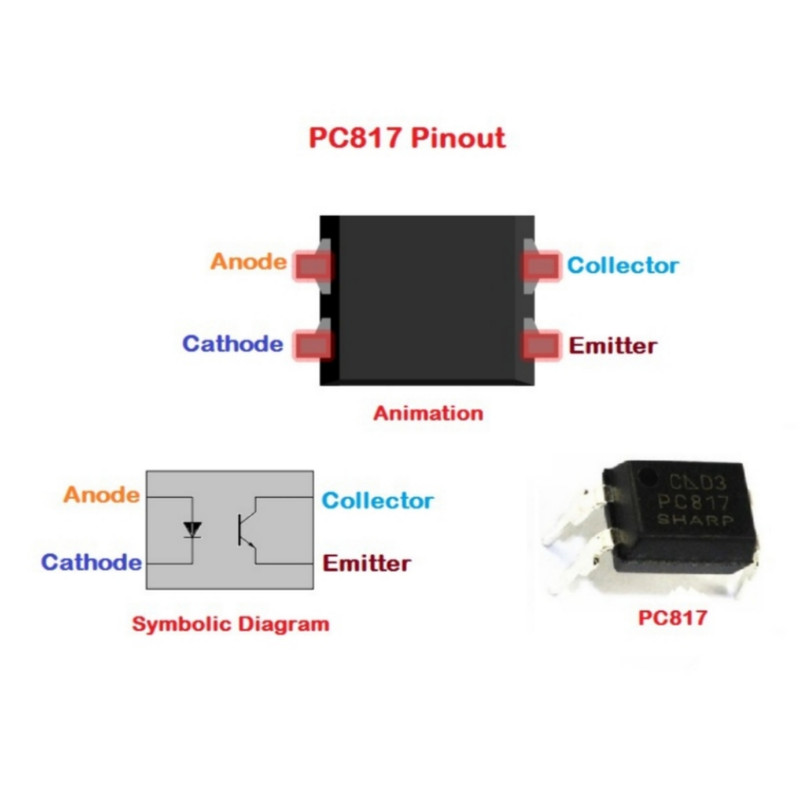

Package / Case: DIP-4

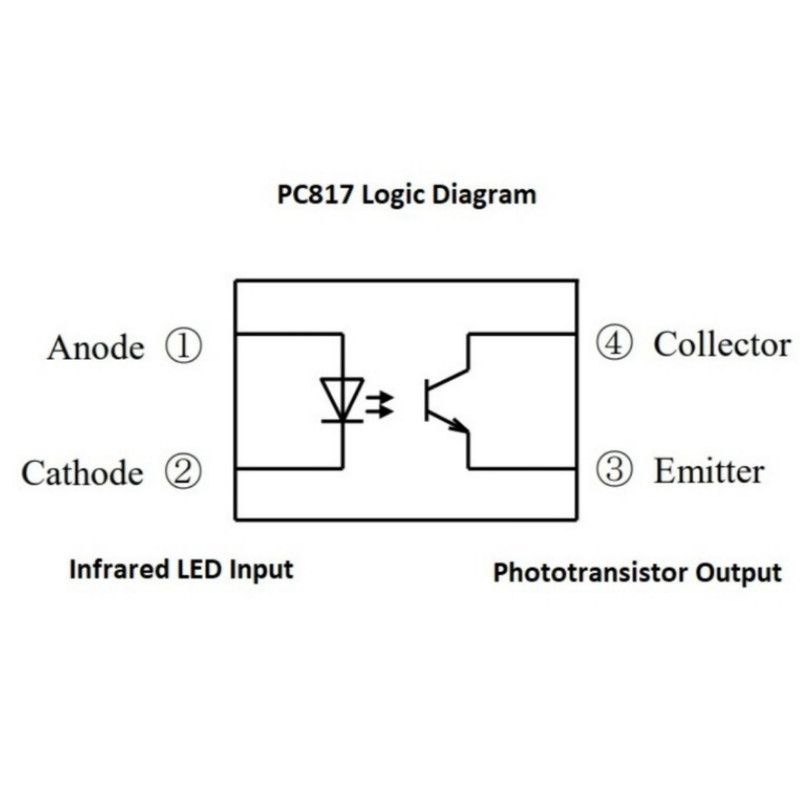

Output Type: Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 20 mA
Maximum Collector Emitter Voltage: 35V
Maximum Collector Current: 50 mA
Isolation Voltage: 5000 Vrms
Maximum Collector Emitter Saturation Voltage: 0.2 V
Vf – Forward Voltage: 1.2 V
Vr – Reverse Voltage: 6 V
Pd – Power Dissipation: 200 mW
Minimum Operating Temperature: – 30 C
Maximum Operating Temperature: + 100 C
